Lucent Code:LRHD8863 AT

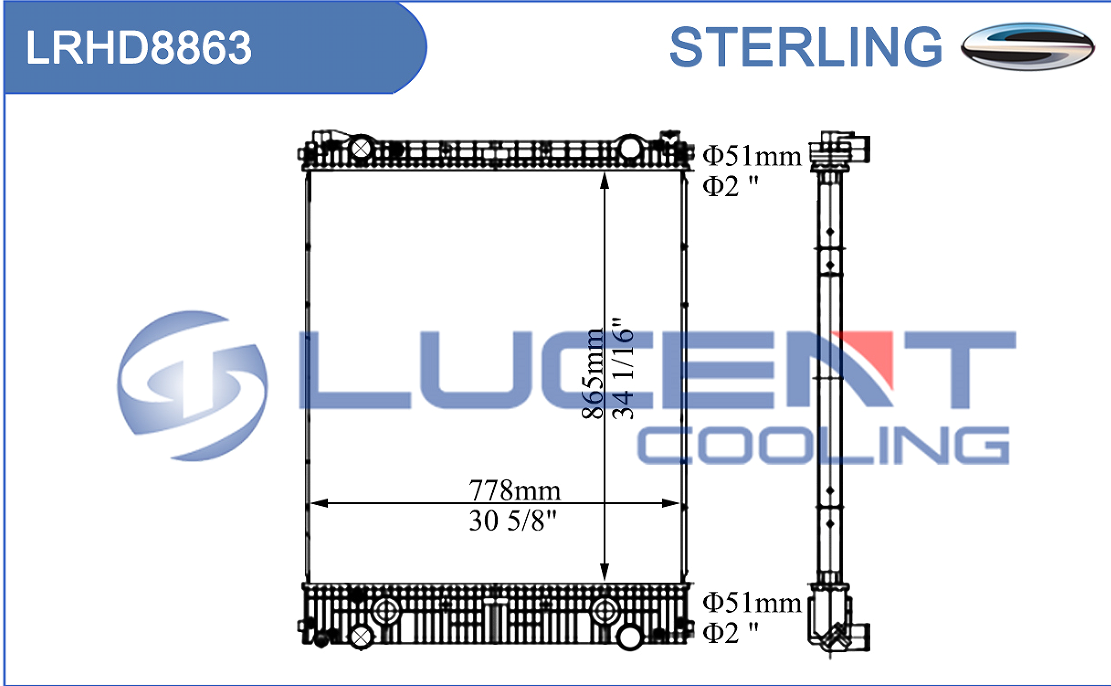

Core Width(in/mm):778mm|30 5⁄8inch

Tank Material(in/mm)：PLASTIC

Toc:Plated

Eoc:NO

Inlet Diameter:51mm|2 1/64inch

Outlet Connect Type:Hose Clamp

Core Thickness(in/mm):48mm|1 15⁄16inch

Inlet Header Length(in/mm):2 7/8 x 31 9/16inch

OUTLET Header Length(in/mm):2 7/8 x 31 9/16inch

No. Of Rows:2

Toc Distance(in/mm):457mm|17 63⁄64inch

Eoc Distance(in/mm):NO

Inlet Connection Type:Hose Clamp

Core Height(in/mm):865mm|34 1⁄16inch

Core Material(in/mm)：ALUMINUM

Flow Configuration：Downflow

Toc Material:Stainless Steel

Eoc Material:NO

Outlet Diameter：51mm|2 1/64inch

Fin Size：8mm| 5/16inch
